Customized Stainless Steel Screw Conveyor with Hopper for Food Grade Material Handling

Customized Stainless Steel Screw Conveyor with Hopper for Food Grade Material Handling

Marka Adı: WeSeW
Model Numarası: KF001-2
MOQ: 1 adet
fiyat: US$800~US$8,000 per pc
Ödeme Şartları: T/T, Western Union
Tedarik Yeteneği: Ayda 10.000 adet
Detay Bilgi
Menşe yeri:
Çin
Sertifika:
CE/UL
Model NO.:
KF001-2
Malzeme:
Paslanmaz çelik
Malzeme Özelliği:
Lazer kesim, elektronik, kumlama
Başvuru:
Amerika
Durum:
Yeni
Uygulanabilir Endüstriler:
Vual
makine test raporu:
Tedarik edilen
çekirdek bileşenler:
Dokuma
Boyut(l*g*y):
Özelleştirilmiş
Spiral Çapı:
Fleksografik / Ofset Baskı
Taşıma Paketi:
AHŞAP KUTU
Şartname:
Özelleştirilmiş
Ticari marka:
Kürek
Menşei:
Çin
Yetenek temini:
Kanala monte
Paket Boyutu:
100.00cm * 100.00cm * 50.00cm
Paket Brüt Ağırlığı:
Çin Birinci Seviye Şehirler
Satış Sonrası Hizmet:
Tedarik edilen
Garanti:
1 Yıl
Yapı:
MG500
Özelleştirme:
Foshan Çin
Nakliye Maliyeti:
1. Örnek siparişler memnuniyetle karşılanır; 2. EXW/FOB: en az 20 GP'; 3. Karışık modeller kabul
Para birimi:
T/T
İade ve geri ödemeler:
7 günden 1 aya kadar
Ambalaj bilgileri:
tahta sandık
Yetenek temini:
Ayda 10.000 adet
Ürün Tanımı

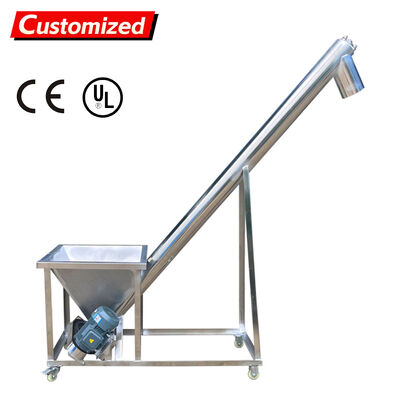

Customized Screw Conveyor with Hopper
Designed for conveying flour, stainless steel-compatible materials, and various food ingredients.
Specifications
Model 110mm 140mm 160mm 219mm 273mm
Material Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Motor Power 1.5-2.2kw 1.5-2.2kw 2.2-3kw 3-4kw 5.5-7.5kw
Hourly Output 1t/h 1.5-2t/h 2-3t/h 3-5t/h 5-8t/h
The length of the material pipe, lifting height, and hopper size can be customized according to requirements. Customization based on drawings is also supported.
Core Performance Advantages
  • Hygienic and Corrosion-Resistant Materials: Entire machine made of 304/316L stainless steel with mirror-polished circular hopper and conveyor body. Eliminates dead corners, resists acid and alkali corrosion, meets food and pharmaceutical-grade hygiene standards, enables CIP in-situ cleaning.
  • High-Efficiency Anti-Clogging Design: Large-diameter circular hopper with variable pitch spiral blades ensures uniform material handling and prevents bridging. Suitable for various materials including grains, urea granules, and plastic powders, improving conveying efficiency by 20%.
  • Sealed, Environmentally Friendly & Low-Consumption: Fully enclosed tubular structure with flange-sealed connections prevents material leakage and dust. Modular structure for easy disassembly, wear-resistant key components, low noise operation, and 30% reduced maintenance costs.
  • Flexible Adaptation to Various Scenarios: Supports horizontal and ≤20° inclined installation. Can be equipped with vibrating feeding device for small batch multi-variety materials. Single machine conveying length up to 70 meters.
Typical Application Scenarios
  • Food Processing: Transfer of raw materials such as grains, flour, and milk powder within workshops. Sealed transportation avoids dust contamination and ensures food safety.
  • Fertilizer Production: Precise feeding of urea granules and compound fertilizers. Corrosion-resistant materials suitable for chemical environments, ensuring stable delivery.
  • Plastic Manufacturing: Inter-process conveying of plastic powders and granules. Prevents materials from getting damp and dust from leaking, ensuring product purity.
  • Pharmaceutical & Chemical Industries: Clean transportation of pharmaceutical powders and chemical raw materials. Complies with GMP certification requirements to avoid cross-contamination.

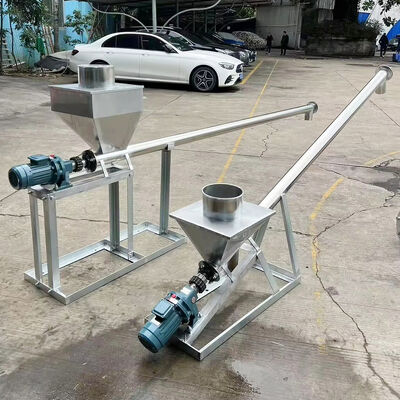

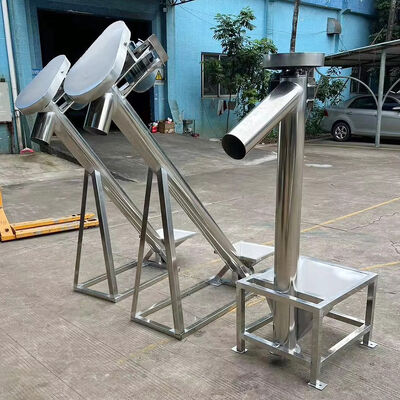

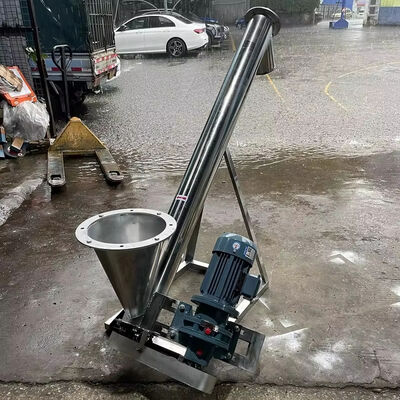

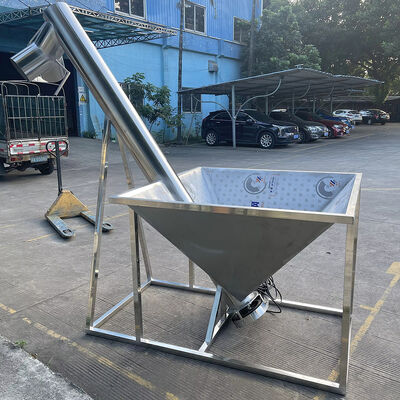

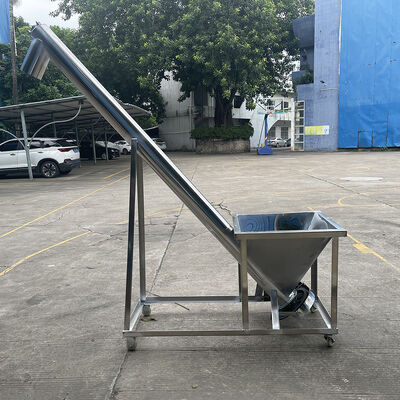

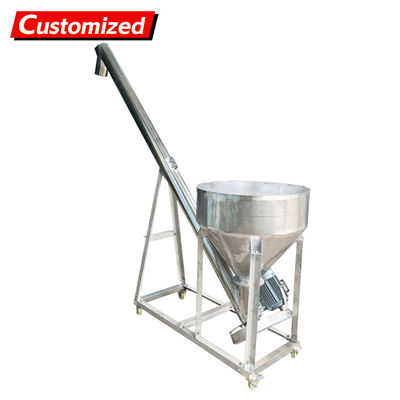

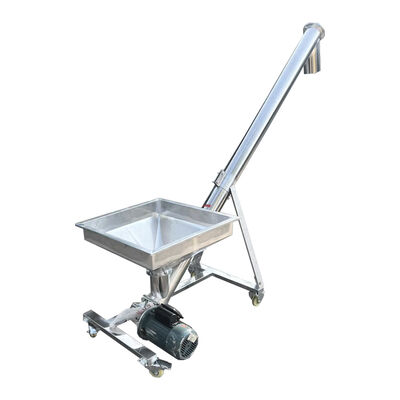

Product Gallery
