oem Screw Sand Washing Machine 175 T/h Spiral Sand Washer Sand Washing Plant Manufacture Spiral Sand Washer to motorway,hydropower, building wash, classify, eliminatecontaminants.

oem Screw Sand Washing Machine 175 T/h Spiral Sand Washer Sand Washing Plant Manufacture Spiral Sand Washer to motorway,hydropower, building wash, classify, eliminatecontaminants.

Marka Adı:	WeSeW
Model Numarası:	Kai001
MOQ:	1 adet
fiyat:	US$20,000~US$80,000 per pc
Ödeme Şartları:	T/T, Western Union
Tedarik Yeteneği:	Ayda 10000 pcs

Detay Bilgi

Ürün Tanımı

Detay Bilgi

Menşe yeri:

ÇİN

Sertifika:

CE,UL

Malzeme:

Paslanmaz çelik/özel

Malzeme özelliği:

Isıya dayanıklı, yangına dayanıklı

Başvuru:

Kimya Endüstrisi, Tahıl Taşımacılığı, Madencilik Taşımacılığı, Enerji Santrali

Çekirdek bileşenler:

Motor

boyut (l*w*h):

Özelleştirilmiş

Spesifikasyon:

Özelleştirilmiş

Yapı:

Konveyör sistemi

Ambalaj bilgileri:

Ahşap kasa

Yetenek temini:

Ayda 10000 pcs

Vurgulamak:

175 T/h Spiral Sand Washer

Stainless Steel Screw Sand Washing Machine

Grain Transport Sand Washing Plant

Ürün Tanımı

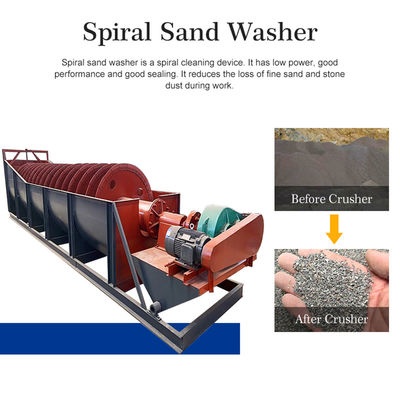

OEM Screw Sand Washing Machine 175 T/h Spiral Sand Washer

This high-capacity spiral sand washer is designed for motorway construction, hydropower projects, and building applications. It effectively washes, classifies, and eliminates contaminants from various sand types.

Product Specifications

Name	Spiral Sand Washer
Usage	Washing Sand
Dimension (LWH)	10970 * 3945 * 4720 mm
Max feeding size	10 mm
After-sales Service	1 Year
Quality	High Level
Installation	Under Technical Guidance
Warranty period	One Year (Except Worn Parts)
Feature	Long Service Life
Advantage	High Clean Ratio

The spiral sand washer is widely used in metallurgy, building materials, hydro-power, and mining industries to process silica sand, river sand, yellow sand, and sea sand. It effectively removes dirt and impurities through washing, classifying, and grading processes.

Technical Parameters

Model	Diameter (mm)	Slot length (mm)	Max input size (mm)	Capacity (t/h)	Rotor Speed (r/min)	Motor Power (kw)	Weight (t)
XL-610	610	7225	≤10	40-50	32	7.5	3.8
XL-762	762	7620	≤10	50-75	26	11	5.2
XL-915	915	7585	≤10	100	21	11	6.3
2XL-915	915	7585	≤10	200	21	2*11	11
XL-1115	1115	9782	≤10	175	17	15	10
2XL-1115	1115	9782	≤10	350	17	2*15	18
XL-1500	1500	10300	≤10	150-200	10.5	15	16

Note: The capacity may vary with different materials and feeding sizes. Technical parameters are subject to change without notice.

Key Features

Minimal loss of medium-fine sand and stone powder
Energy efficient operation with large processing capacity
Durable construction for long service life
Advanced technology with simple process and high efficiency
Environmentally friendly design with water recycling capability

Applications

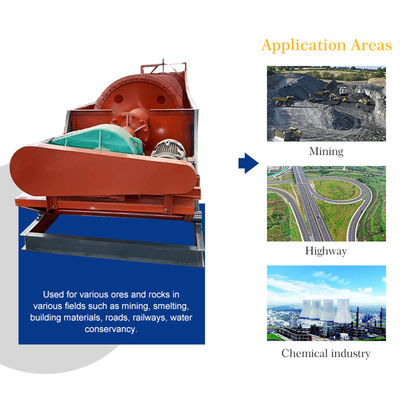

The spiral sand washer is ideal for sand removal and screening operations at construction sites, sand and gravel plants, and hydro-power stations. It effectively cleans 0-30mm materials, separating dirt and dust, and is suitable for processing over 300 types of stone materials.

Product Images
